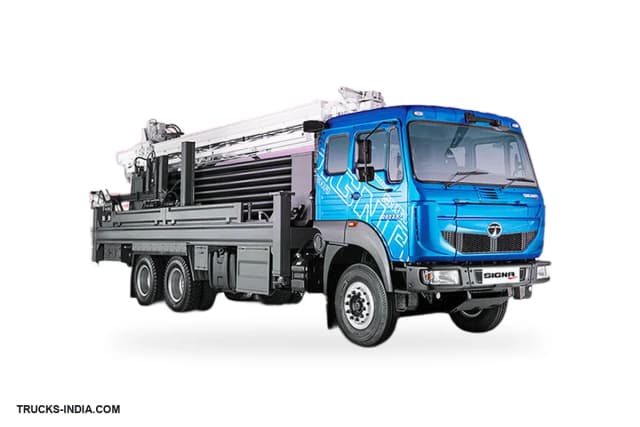

Tata Signa 2823.K Drill Rig CAB/3880/16 Box Body
A cab and chassis without a load body: build the body your goods need. 26,000 kg payload.
Cab and chassis: it comes with the cabin but no load body, so you have a body built to suit your goods.
3880 is the wheelbase in millimetres: 3,880 mm (12 ft 9 in) between the front and rear axles.
Box body: a tipper body for sand, soil and aggregates.
What it costs in your city
There is no separate price for the CAB/3880/16 Box Body yet, so these figures use the Tata Signa 2823.K Drill Rig starting price of ₹58.00 L. A dealer can quote this exact version. Tata Signa 2823.K Drill Rig on-road price
On-road figures are estimates; RTO and insurance vary by state and insurer. Dealers quote exact prices. EMI is indicative; your lender sets the final rate.
How much can you carry?
Rated payload is 26,000 kg, about 260 quintals within a 28,000 kg GVW. Pick what you haul to see it in bags, crates or bricks.
3 km/l claimed, about 900 km a tank
Based on the claimed 3 km/l and the 300-litre tank, starting from today's Delhi diesel price. Every Tata Signa 2823.K Drill Rig version shares the same engine; real mileage depends on load, route and driving. Tata Signa 2823.K Drill Rig mileage in detail
Tata Signa 2823.K Drill Rig CAB/3880/16 Box Body specifications
Same on every Tata Signa 2823.K Drill Rig version
- Body
- Box body
- Chassis
- Chassis with Cabin
- Gross vehicle weight (GVW)
- 28,000 kg
- Torque
- 850 Nm
- Emission norm
- BS6
- Gearbox
- 6 Forward + 1 Reverse
- Fuel
- Diesel
- Fuel tank
- 300 litres
- Claimed mileage
- 3 km/l
- Tyres
- 10, 295/95 R20
- Axle configuration
- 6x4
- Ground clearance
- 249 mm
- Gradeability
- 39%
- Top speed
- 60 km/h
- Cabin
- Day Cabin
- Seating
- D+1
- Brakes
- Air Brake
- Air conditioning
- Yes
- Power steering
- Yes
Is the CAB/3880/16 Box Body right for you?
Choose the CAB/3880/16 Box Body if you want a body built for your goods, such as a container, tanker or refrigerated box.
Against the 4,880 mm versions, the CAB/3880/16 Box Body has
All versions side by side: Tata Signa 2823.K Drill Rig variants tableFrequently asked questions
What is the price of the Tata Signa 2823.K Drill Rig CAB/3880/16 Box Body?
We do not list a separate price for the Tata Signa 2823.K Drill Rig CAB/3880/16 Box Body yet. The Tata Signa 2823.K Drill Rig range is ₹58-78 lakh ex-showroom. A dealer can quote this exact version.
What is the loading capacity of the Tata Signa 2823.K Drill Rig CAB/3880/16 Box Body?
It is rated to carry 26,000 kg within a gross vehicle weight of 28,000 kg. Loading past the rated payload invites fines and faster wear.
What is the difference between the Tata Signa 2823.K Drill Rig CAB/3880/16 Box Body and CAB/4880/20 Box Body?
Compared with the CAB/4880/20 Box Body, the CAB/3880/16 Box Body has a 1,000 mm shorter wheelbase.
More on the Tata Signa 2823.K Drill Rig
Names read wheelbase / body. CAB cab and chassis
