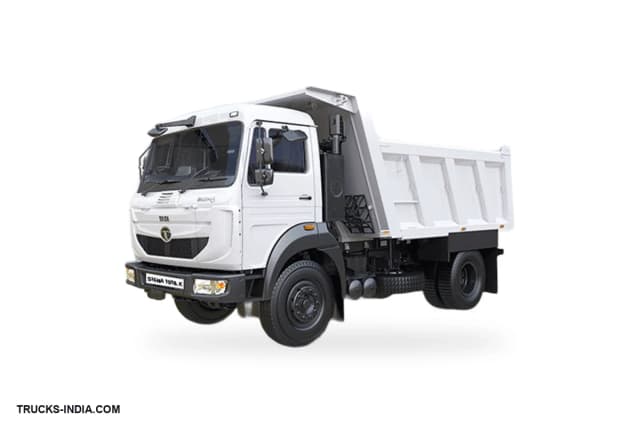

Tata Signa 1918.K 3225/4.5 Cum Box
A tipper body for sand, soil and aggregates. 18,500 kg payload.
3225 is the wheelbase in millimetres: 3,225 mm (10 ft 7 in) between the front and rear axles.
4.5 cubic metres: the body holds 4.5 m³ of material when level-filled.
What it costs in your city
On-road figures are estimates; RTO and insurance vary by state and insurer. Dealers quote exact prices. EMI is indicative; your lender sets the final rate.
How much can you carry?
Rated payload is 18,500 kg, about 185 quintals within a 18,500 kg GVW. Pick what you haul to see it in tonnes or bricks.
4.5 km/l claimed, about 1,350 km a tank
Based on the claimed 4.5 km/l and the 300-litre tank, starting from today's Delhi diesel price. Every Tata Signa 1918.K version shares the same engine; real mileage depends on load, route and driving. Tata Signa 1918.K mileage in detail
Tata Signa 1918.K 3225/4.5 Cum Box specifications
More specifications
- Turning radius (as listed)
- 11 m
- Body (same on every version)
- Box body
- Chassis (same on every version)
- Chassis with Cabin
- Gross vehicle weight (GVW) (same on every version)
- 18,500 kg
- Torque (same on every version)
- 700 Nm
- Emission norm (same on every version)
- BS6
- Gearbox (same on every version)
- 6 Forward + 1 Reverse
- Fuel (same on every version)
- Diesel
- Fuel tank (same on every version)
- 300 litres
- Claimed mileage (same on every version)
- 4.5 km/l
- Tyres (same on every version)
- 6, 295/95 D20
- Axle configuration (same on every version)
- 4x2
- Ground clearance (same on every version)
- 230 mm
- Top speed (same on every version)
- 80 km/h
- Cabin (same on every version)
- Day Cabin
- Seating (same on every version)
- D+1
- Brakes (same on every version)
- Air Brake
- Power steering (same on every version)
- Yes
Body, Chassis, Gross vehicle weight (GVW), Torque and more are the same on every Tata Signa 1918.K version.
Is the 3225/4.5 Cum Box right for you?
Choose the 3225/4.5 Cum Box if you work in city lanes and tight loading bays, where a shorter wheelbase turns more easily.
Against the 3,580 mm versions, the 3225/4.5 Cum Box has
All versions side by side: Tata Signa 1918.K variants tableFrequently asked questions
What is the price of the Tata Signa 1918.K 3225/4.5 Cum Box?
The Tata Signa 1918.K 3225/4.5 Cum Box costs ₹26.35 lakh ex-showroom. On-road in Delhi it comes to about ₹28.25 L once RTO and insurance are added, and the EMI starts near ₹46,891 a month with 20% down over five years.
What is the loading capacity of the Tata Signa 1918.K 3225/4.5 Cum Box?
It is rated to carry 18,500 kg within a gross vehicle weight of 18,500 kg. Loading past the rated payload invites fines and faster wear.
What is the difference between the Tata Signa 1918.K 3225/4.5 Cum Box and 3580/10.5 Cum Box?
Compared with the 3580/10.5 Cum Box, the 3225/4.5 Cum Box has a 355 mm shorter wheelbase and a wider turning radius.
